Kawata Chuck Mfg. Co., Ltd.
Index tool for machining centre

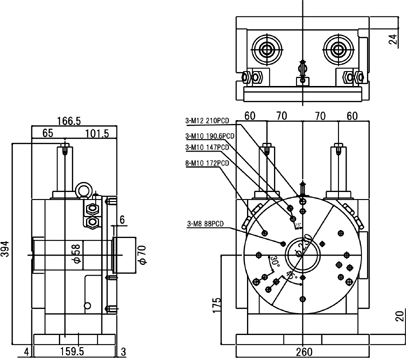

FDR-230-04-360
| Table diameter | 230φ |
| One push an angle | 90° |
| Smallest indexable angle | 1° |
| Reverse indexing possible | |
 One push=83mmSmallest indexable angle=1° Weight=55kg |
|
 |  |
|---|
 |
Table diameter | One push an angle | 1°indexable angle | Model |
|---|---|---|---|---|
| 170φ | 90° |  FDR-150-04 |
||
| 230φ | 45° | FDR-230 |
||
| 〇 | FDR-230-360 |
|||
| 90° | FDR-230-04 |
|||
| 〇 | FDR-230-04-360 |
|||
| 340φ | 45° | FDR-340 |
||
| 〇 | FDR-340-360 |
