Kawata Chuck Mfg. Co., Ltd.
Index tool for machining centre
FDR-230
| Table diameter | 230φ |
| One push an angle | 45° |
| Smallest indexable angle | 5° |
| Reverse indexing possible | |

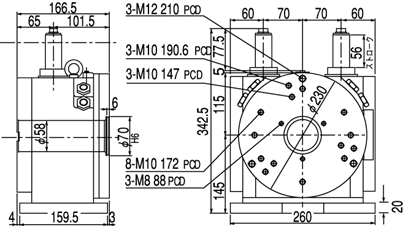

 One push=56mmSmallest indexable angle=5° Through-hole depth=58mm Orientation as installed=Vertical or Horizontal Weight=48kg Key way width 16 |
|
 |  |
|---|
 |
Table diameter | One push an angle | 1°indexable angle | Model |
|---|---|---|---|---|
| 170φ | 90° |  FDR-150-04 |
||
| 230φ | 45° | FDR-230 |
||
| 〇 | FDR-230-360 |
|||
| 90° | FDR-230-04 |
|||
| 〇 | FDR-230-04-360 |
|||
| 340φ | 45° | FDR-340 |
||
| 〇 | FDR-340-360 |
