Index tool for machining centre

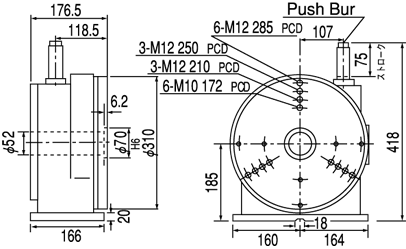

FD-300

Table diameter 310φ
One push an angle 45°
Smallest indexable angle 5°
One push=75mm
Smallest indexable angle=5°
Through-hole depth=52mm
Orientation as installed=Horizontal
Weight=80kg
Key way width 18

　 Table diameter One push an angle 1°indexable angle Model
210φ 15° FD-200　
〇 FD-200-360　
90° FD-200-04
310φ 45°   FD-300
〇 FD-300-360
