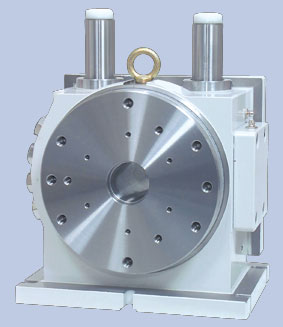

Index tool for machining centre
FDR-150-04
Table diameter | 170φ |
One push an angle | 90° |
Smallest indexable angle | 5° |
Reverse indexing possible | |

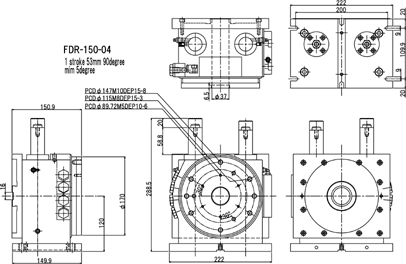

One push=53mm Smallest indexable angle=5° Weight=40kg |
Table diameter | One push an angle | 1°indexable angle | Model | |
---|---|---|---|---|
170φ | 90° | FDR-150-04 | ||
230φ | 45° | FDR-230 | ||
〇 | FDR-230-360 | |||
90° | FDR-230-04 | |||
〇 | FDR-230-04-360 | |||
340φ | 45° | FDR-340 | ||
〇 | FDR-340-360 |
