Kawata Chuck Mfg. Co., Ltd.
Index tool for machining centre

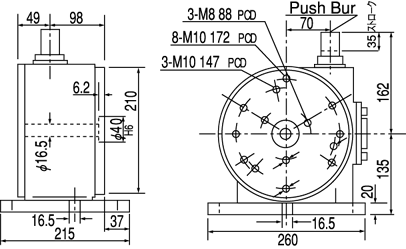

FD-200
| Table diameter | 210φ |
| One push an angle | 15° |
| Smallest indexable angle | 5° |
 One push=35mmSmallest indexable angle=5° Through-hole depth=16.5mm Orientation as installed=Horizontal Weight=37kg Key way width16 |
|
 |
 |
|---|
 |
Table diameter | One push an angle | 1°indexable angle | Model |
|---|---|---|---|---|
| 210φ | 15° |  FD-200 |
||
| 〇 | FD-200-360 |
|||
| 90° | FD-200-04 |
|||
| 310φ | 45° | FD-300 |
||
| 〇 | FD-300-360 |
|||
